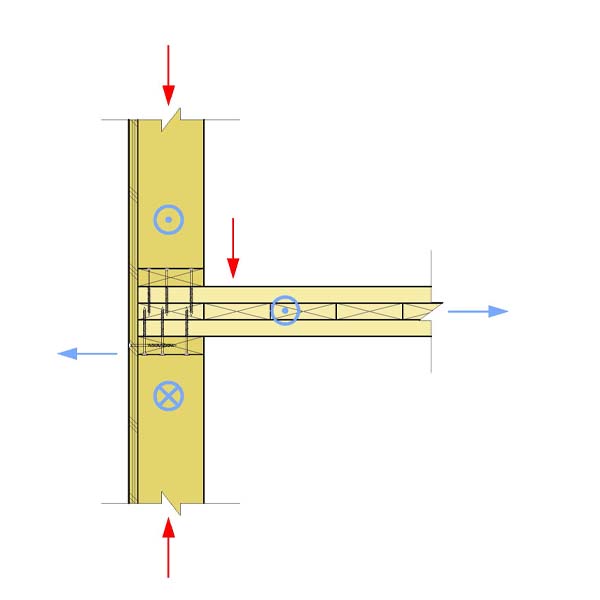

Floor Panel Bears on Wall – Platform with Non-Fire-Resistance-Rated Wall
Floor panel bears on wall below. Wall above bears on floor panel. A positive connection is made between walls and floor panel with dowel-type fasteners.
Floor Panel Bears on Wall – Platform with Non-Fire-Resistance-Rated Wall
Floor panel bears on wall below. Wall above bears on floor panel. A positive connection is made between walls and floor panel with dowel-type fasteners.
Purpose: Transfer of vertical load from floor panel and wall above to wall below. Can also transfer in-plane and out-of-plane loads between the wall and floor panel.
Design Notes
- Capacity of primary load path is controlled by perpendicular-to-grain bearing capacity of floor panel or wood stud walls.
- Dowel-type fasteners provide load path for in-plane and out-of-plane loads.
- Because the wood-framed walls are not rated for fire resistance, there is no need to rate the connection for fire resistance.
- Class
- Class 1
- Load
- Load High
- Cost
- Cost $
- Const.
- Constructability Easy
