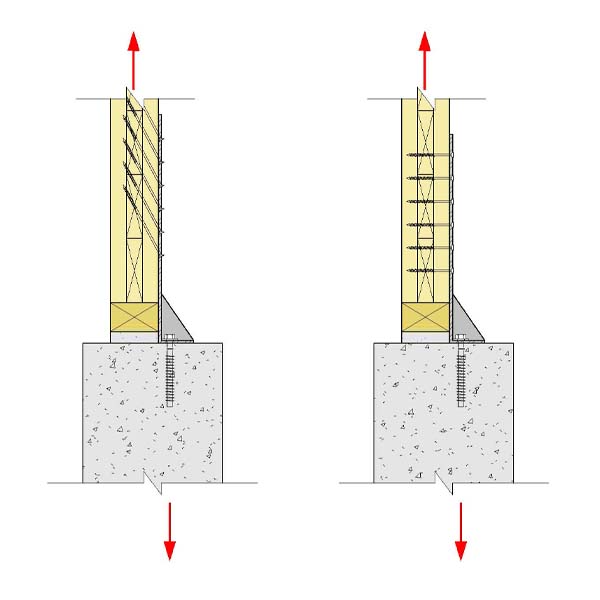

Panel is Supported by Proprietary Connector (Simpson Holdown Detail)
Proprietary connector is connected to top of roof or floor panel with partially-threaded screws.
Panel is Supported by Proprietary Connector (Simpson Holdown Detail)
Proprietary connector is connected to top of roof or floor panel with partially-threaded screws.
Purpose: Transfer of diaphragm forces from roof or floor panel to vertical lateral force-resisting system.
Design Notes
- Capacity of connection in the mass timber components is dependent on manufacturer’s literature.
- Refer to other details in this table for gravity load transfer along length of panel to concrete connection.
- Class
- Class 3
- Load
- Load Medium
- Cost
- Cost $$
- Const.
- Constructability Easy
- Fire
- Fire Rating III
