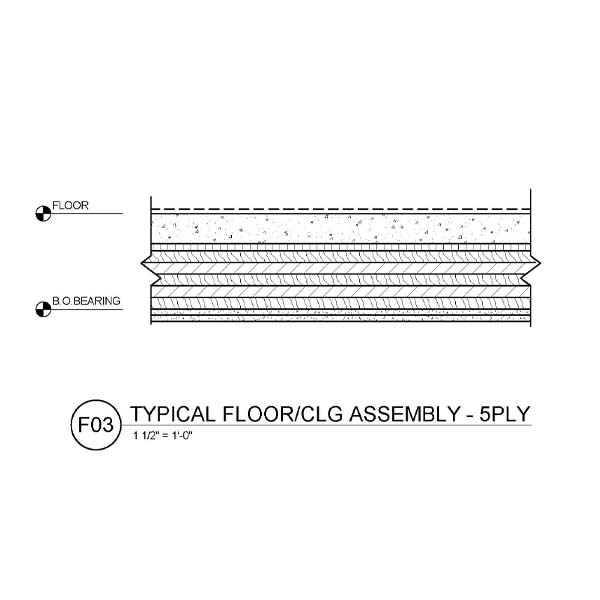

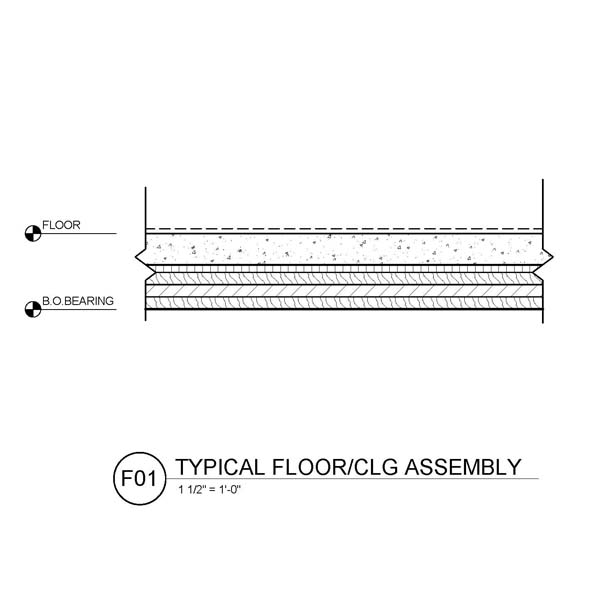

Typical 5-Ply CLT Floor with Concealed Ceiling
Minimum 3/4"-thick floor topping with minimum compressive strength of 1800 psi; reinforce topping slab as required
Sound insulation board
CLT panels
5/8" Type X gypsum
Typical 5-Ply CLT Floor with Concealed Ceiling
Description:
- Minimum 3/4″-thick floor topping with minimum compressive strength of 1800 psi; reinforce topping slab as required
- Sound insulation board
- CLT panels
- 5/8″ Type X gypsum
Purpose: CLT floor assembly with concrete/gypsum topping (ceiling side concealed)
Design Notes
Topping options:
- Normal or lightweight concrete
- Gypsum concrete floor
Sound insulation options:
- Thickness varies; thicker mat will provide better acoustic separation
Acoustics:
- 5-ply CLT (6.875″ total thickness) with 2″ concrete with Maxxon Acousti-Mat SBR over Maxxon Acousti-Mat (3/4″-thick) with 2 layers 5/8″ Type X gypsum = STC 58 & IIC 55
Fire:
- Non-rated 3-ply CLT 1 1/2-hr rating possible: 5-ply CLT Design No. L901
- Const.
- Constructability Easy
- Fire
- Fire Rated Up To 1-1/2 Hours
