Design Notes

Capacity of primary load path is controlled by perpendicular-to-grain bearing capacity of floor panel or beam.
Screws provide load path for in-plane loads.

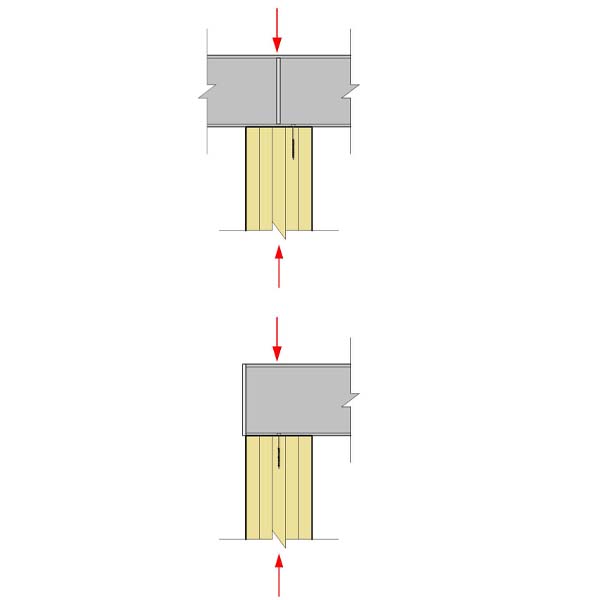

Panel Bears on Beam

Roof or floor panel bears on top of wood beam. Positive attachment is made with partially-threaded screws.
