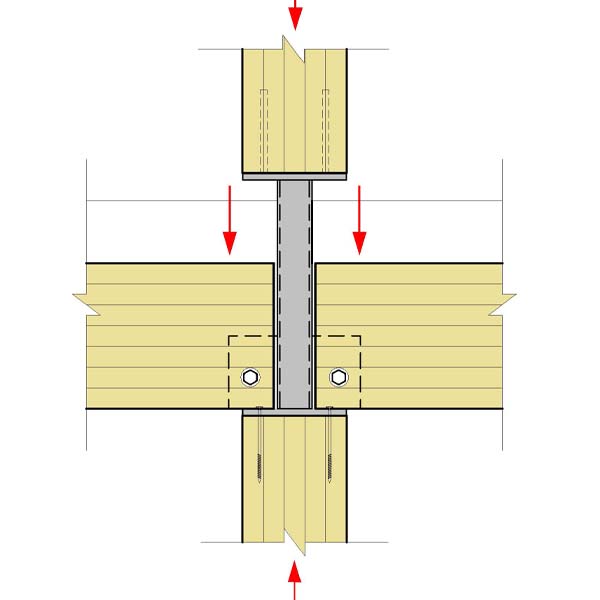

03.B - Multiple Beams Bear on Bearing Plate with Steel Standoff Supporting Column Above

Multiple Beams Bear on Bearing Plate with Steel Standoff

Column above floor is supported by steel standoff and beams bear on plate with a knife plate at base of standoff. Steel components are connected to wood with glued-in rods, dowels, or screws.

Purpose: Transfer of vertical loads from beams to column and transfer of vertical load from column above directly to column below.

Design Notes

  • Alternate connections include bucket plates for columns and/or beams with through-bolts.
  • Beams may also be framed in perpendicular direction.
  • Capacity of connection is dependent on perpendicular-to-grain capacity of beam and parallel-to-grain capacity of the columns.
  • Deck not shown for clarity. Beam may require bracing for lateral-torsional buckling.
Class
Class 2
Load
Load High
Cost
Cost $$$
Const.
Constructability Moderate
Fire
Fire Rating III
