Column Bears with Proprietary Adjustable Column Base

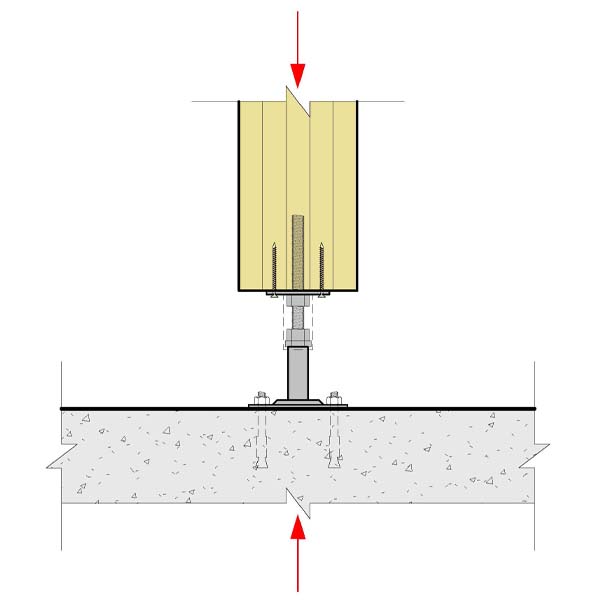

Column bears on proprietary steel standoff assembly consisting of upper bearing plate and base plate separated by an adjustable standoff. Upper bearing plate is positively connected to column with partially-threaded screws. Bearing plate is connected to concrete with post-installed anchors.

Purpose: Transfer of vertical load from wood column to concrete.

Design Notes

  • Capacity of connection is as specified by the manufacturer’s literature.
  • Adjustable standoff hardware may be concealed by a sleeve.
  • Height adjustability of column base varies by manufacturer.
  • Standoff allows for architectural finishes and elevates base of column to reduce exposure to potential moisture sources.
  • Potential suppliers include Rothoblaas.
Class
Class 3
Load
Load Low
Cost
Cost $$$$
Const.
Constructability Easy
Fire
Fire Rating III
