CLT Hung Support Hung from Underside of CLT Floor

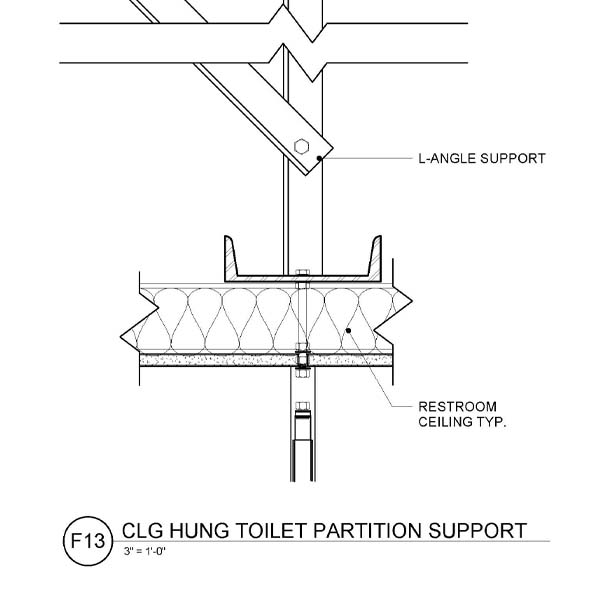

Assembly for mounting ceiling-supported elements hung from the CLT floor above (e.g., for toilet partitions, heavy light fixtures, artwork, etc.).
CLT Hung Support Hung from Underside of CLT Floor
Description: Assembly for mounting ceiling-supported elements hung from the CLT floor above (e.g., for toilet partitions, heavy light fixtures, artwork, etc.).
Purpose: CLG hung support mounted to underside or CLT floor.
Design Notes
- L-angle supports mounted to underside of CLT with lag screws.
- Threaded rod used off bottom of support plate.
- L-angle supports and brace bolted together.
- 5/8″ gypsum board, suspended ceiling (24″-deep plenum) with 3 1/2″ mineral wool batt insulation, 5/8″ gypsum board.
Acoustics:
- 5-ply CLT (6.875″ total thickness) with 3/4″ Gyp-Crete over Maxxon Acousti-Mat 1/8″ = IIC 56 & STC 54.
Fire:
- Non-rated 3-ply CLT 1 1/2-hr rating possible: 5-ply CLT Design No. L901.
- Const.
- Constructability Easy
- Fire
- Fire Rated Up To 1-1/2 Hours
