Design Notes

Capacity of connection is dependent on parallel-to-grain capacity of wall panel.
Increased capacity can be achieved with bearing plate below beam and/or bearing beam on full thickness of wall.
Connection is capable of transferring out-of-plane loads between wall panel and beam where no diaphragm is provided.
Steel beam depth to be great enough for screw installation. Consider alternate attachment where required.
Addition of bearing plate may aid in fastener installation.

Class: Class 1
Load: Load High
Cost: Cost $
Const.: Constructability Easy
Fire: Fire Rating II

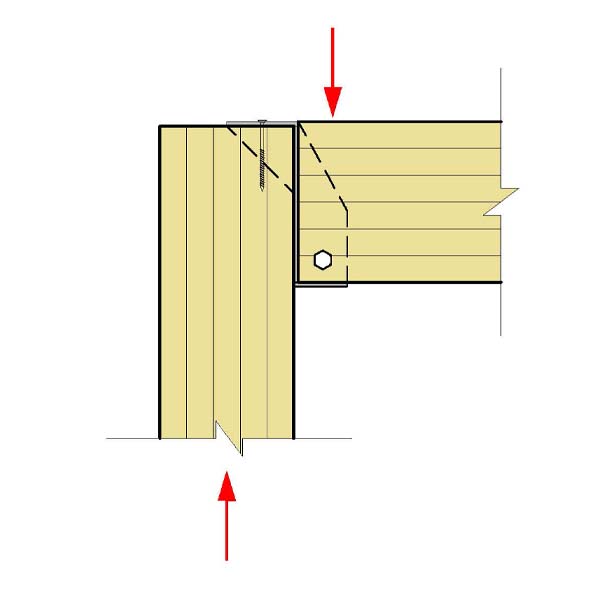

Beam Bears on Mass Timber Wall Panel

Beam bears on top of mass timber wall panel and is positively connected to panel with partially-threaded screws.

03.C - Beam Bears on Mass Timber Wall Panel
