Albina Yard

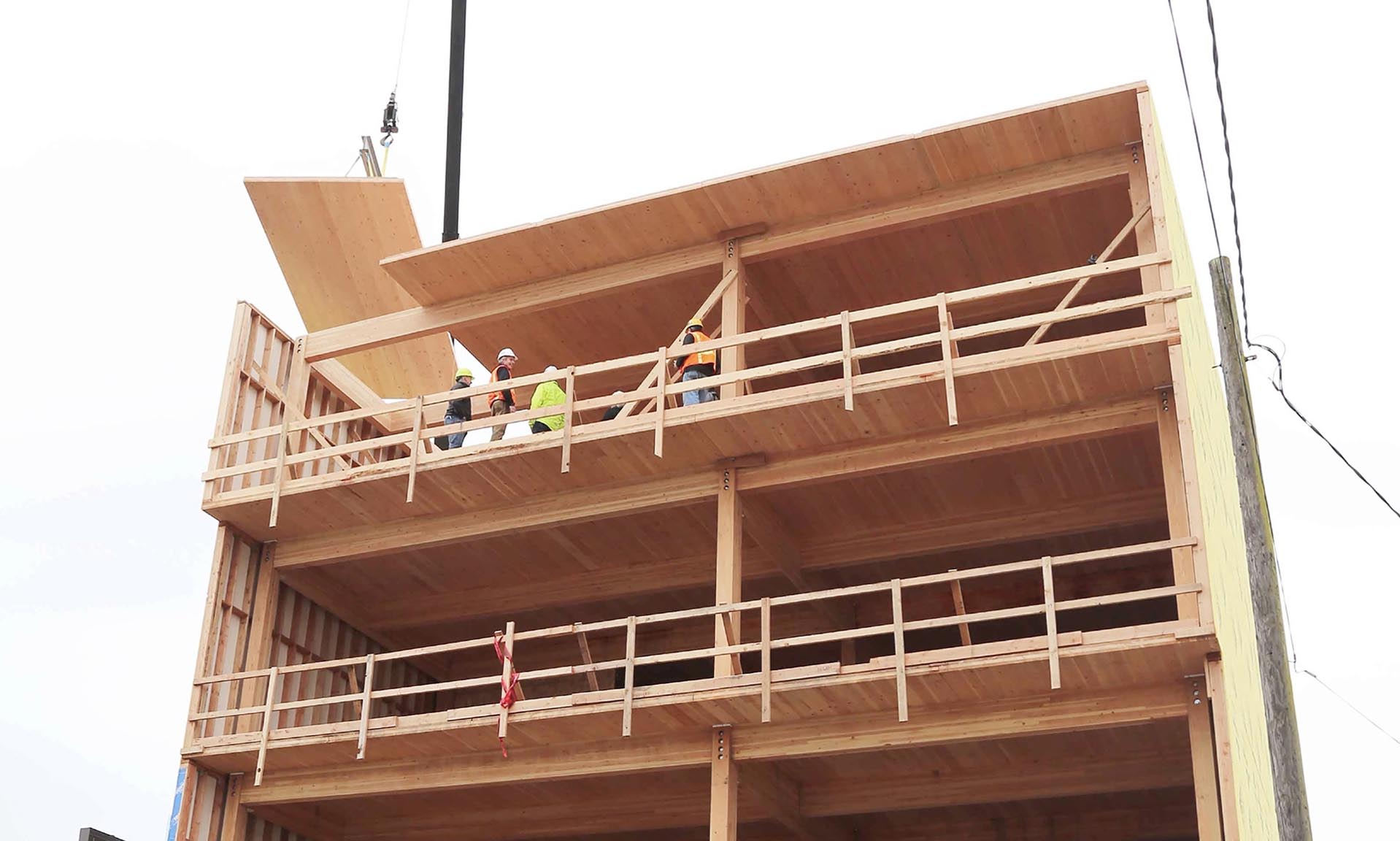

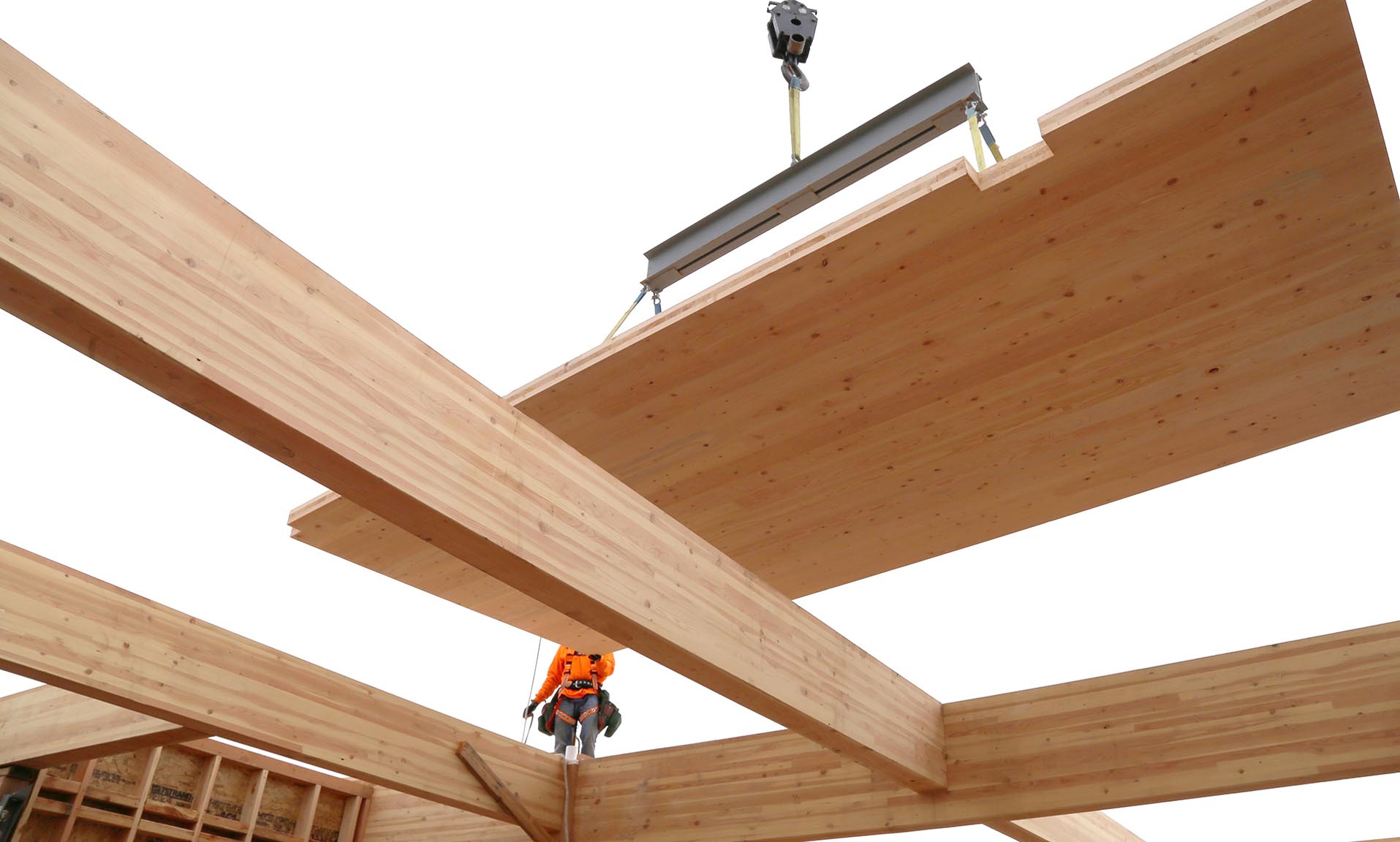

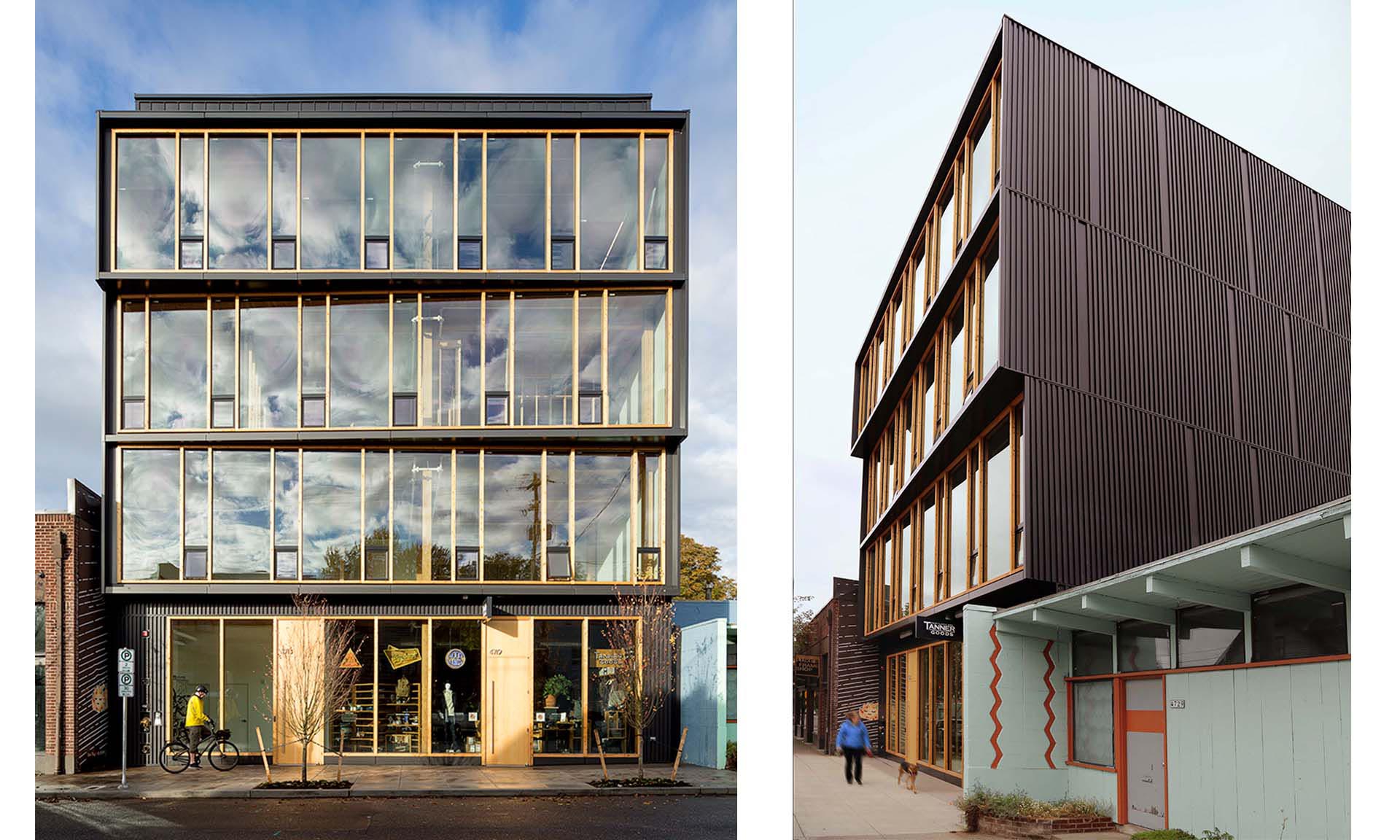

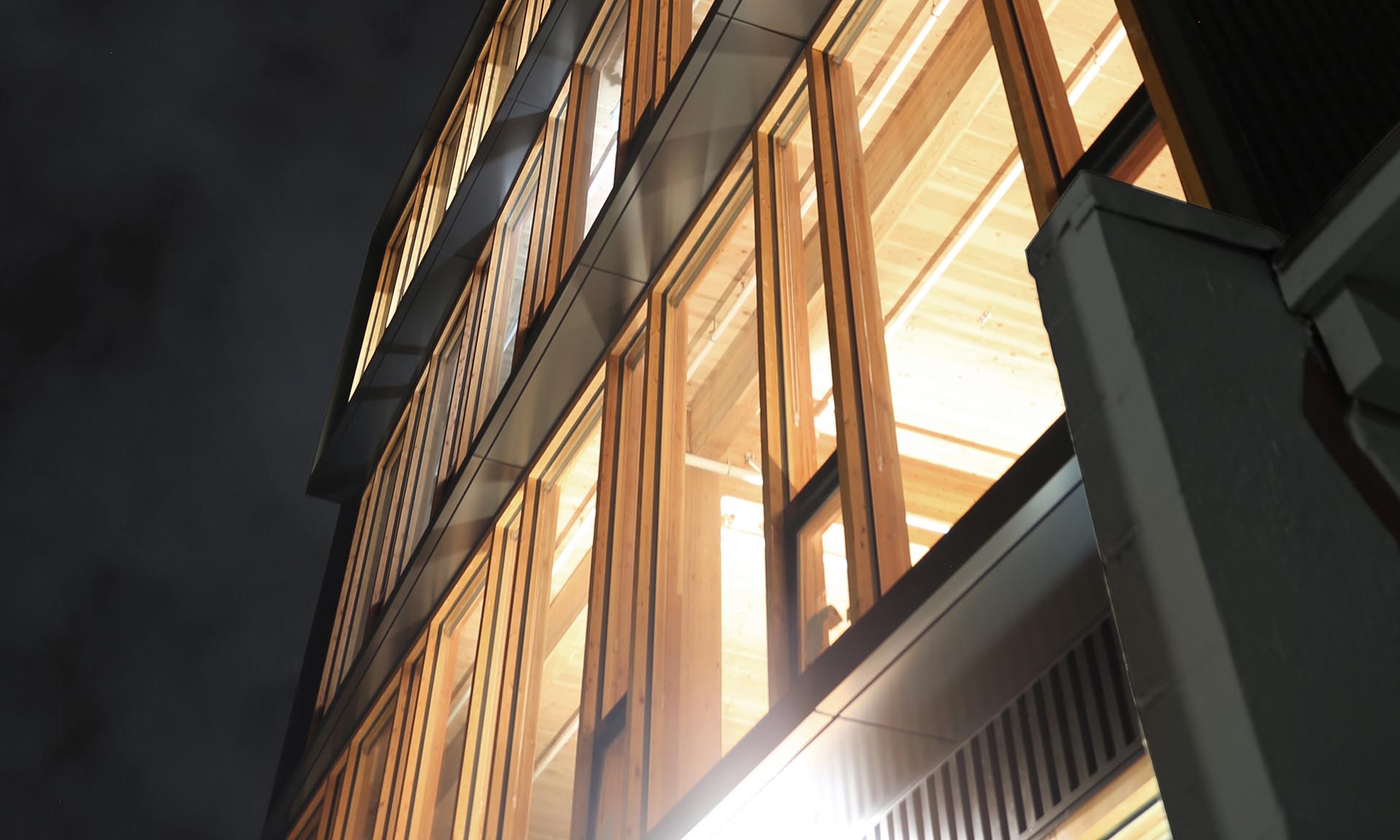

Albina Yard is a four-story, Type VB office building with ground floor retail. The architecture is focused on economy and simplicity, raw material expression, and the careful resolution and integration of building systems to foreground the beauty of the exposed Douglas fir structural frame. The 16,000-sf building is structured with a glulam timber frame and CLT panels—all locally manufactured. It was the first building the U.S. to use CLT panels as the structural diaphragm. Experientially, the dynamic form of the primary street façade is a direct expression of the 4-ft cantilevering capability of a 3-ply CLT panel. These cantilevers frame four levels of a structural glulam wood window wall system. Working collaboratively, the team optimized costs by simplifying details and leveraging CLT’s two-way spanning capacity to utilize fewer glulam beams. Columns and beams were prefabricated offsite to 1/8-in. tolerances, allowing components to be quickly assembled on site with custom connections.
