02.B - Floor Panel Bears on Column at Bracket

Floor Panel Bears on Column at Bracket

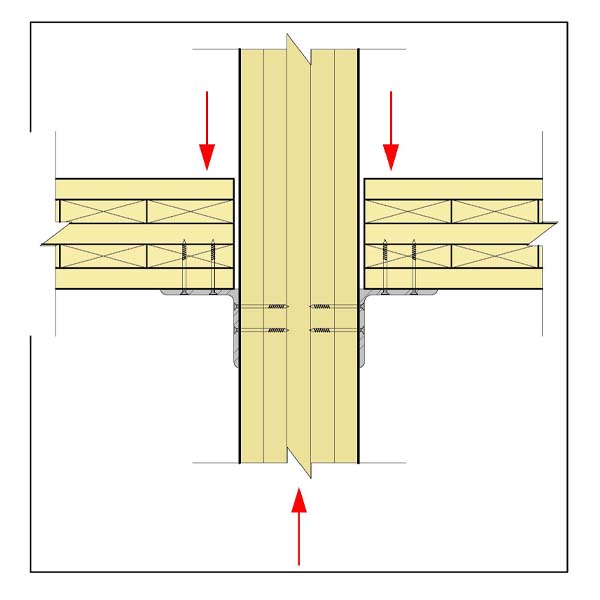

Roof or floor panel bears on steel brackets connected to the side of the wood column with dowel-type fasteners. Positive connection of the floor panel is made with partially-threaded screws.

Purpose: Transfer of vertical load from floor panels to wood column.

Design Notes

  • Capacity is controlled by perpendicular-to-grain bearing capacity of floor or roof panel, or shear capacity of the bracket attachment.
  • This connection is unique to single-point support of mass timber panels with two-way span capability such as CLT or SCL-CLT.
  • Constructability can be affected by the need for temporary bracing of column.
  • Designer must account for eccentricity between load and reaction.
Class
Class 2
Load
Load Low
Cost
Cost $$
Const.
Constructability Easy
Fire
Fire Rating III
