Roof Joist Perpendicular to Area Separation Wall-I-joist

Flat roof I-joists framed into the side of a wood stud wall with gypsum wall board finishes as required for fire protection; modified balloon framing detailed for shear transfer.

Roof Joist Perpendicular to Area Separation Wall-I-joist

Flat roof I-joists framed into the side of a wood stud wall with gypsum wall board finishes as required for fire protection; modified balloon framing detailed for shear transfer.

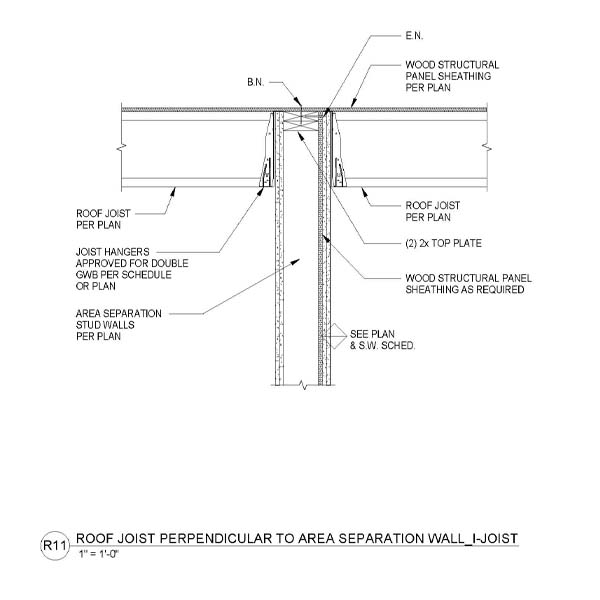

R11 - ROOF JOIST PERPENDICULAR TO AREA SEPARATION WALL-I-JOIST
